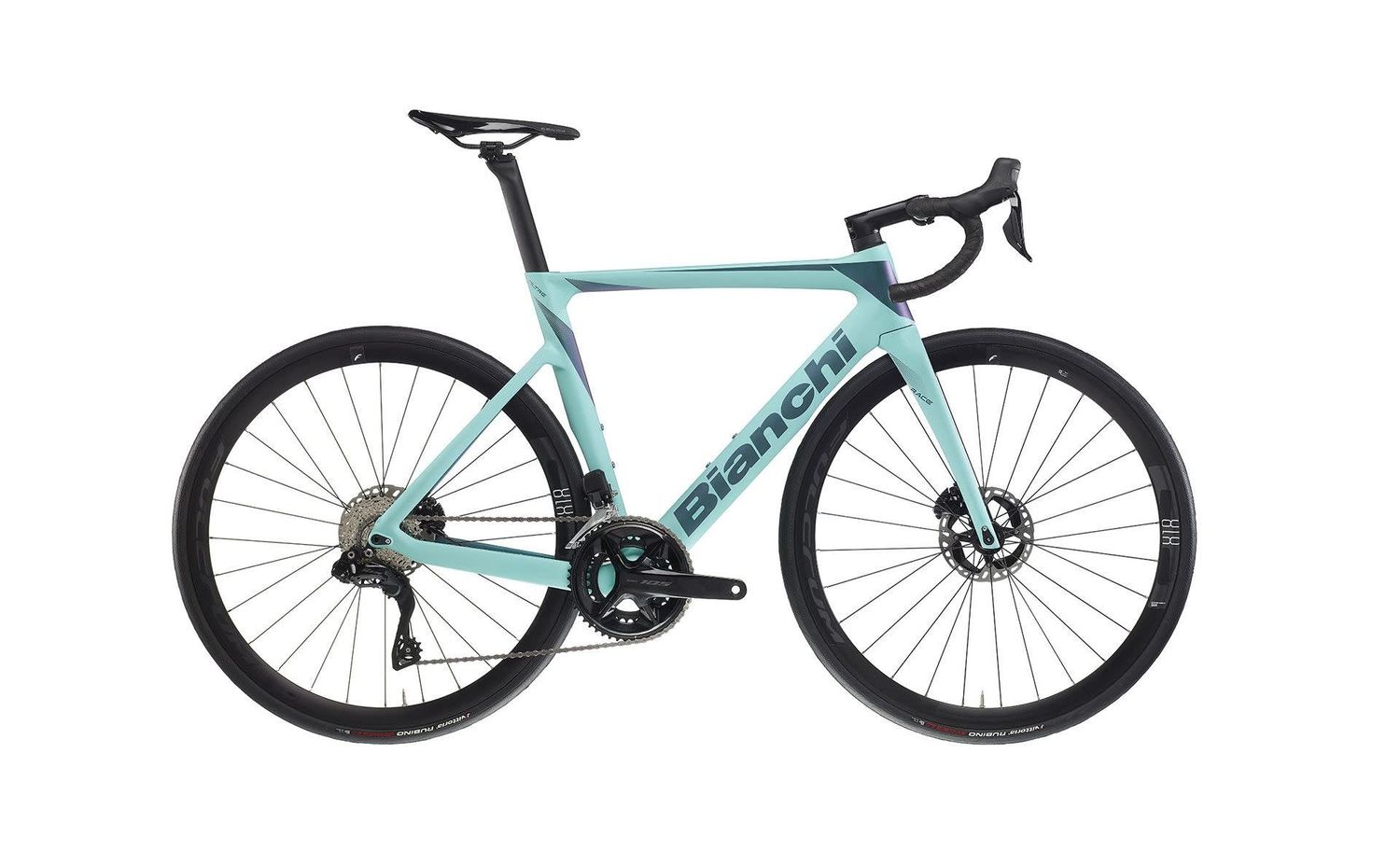

Bianchi Oltre Race 105 Di2 12spd 2024

TECH SPECS

• FRAMESET

  1. FRAME

     Oltre Race aero carbon, compatible with mechanical/electronic transmissions, compatible with internal cable routing, BB-PressFit 86,5x41, integrated seat clamp, disc brake flat mount, thru axle 12x142 sizes 44-47-50-53-55-57-59-61cm

  2. FORK

     Full Carbon Aero Road, integrated head , disc brake flat mount, thru axle 12x100

  3. HEADSET

     ACROS & FSA, for internal cable routing

• DRIVETRAIN

  1. SHIFTERS

     Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor

  2. REAR DERAILLEUR

     Shimano, RD-R7150, 105 Di2 12-speed

  3. FRONT DERAILLEUR

     Shimano 105 Di2 12sp, FD-R7150, top gear 50-52T, for rear 12-speed

  4. CRANKSET

     Shimano 105 12sp, FC-R7100, hollowtech 2, for rear 12- speed, 50x34T Crank Length: 165mm-44cm, 170mm-47/53cm, 172.5mm-55/59cm, 175-61cm

  5. BOTTOM BRACKET

     Shimano, SM-BB72-41B, press fit for road

  6. CHAIN

     Shimano, 105 12sp, CN-M7100

• BRAKES

  1. BRAKES

     Shimano BR-R7170 Hydraulic disc brake, included in the shifter

  2. ROTOR

     Shimano rotor for disc brake center lock, 160mm

• WHEELS

  1. WHEELS

     Fulcrum Racing 818 disc brake, Aluminium C19 2WF-R Tubeless ready 622x19c, profile height 34mm, HG11

  2. TIRE

     Vittoria Rubino IV G2.0 graphene, 700x28, 60TPI

• COCKPIT

  1. STEM

     Velomann, Alloy 6061, raise - 7° Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

  2. HANDLEBAR

     Velomann Aero Compact, alloy 6061 diam. 31,8mm, reach 74mm, drop 116mm Size: 400mm-47/53cm, 420mm-55/59cm, 440mm-61cm

  3. GRIPS

     Bianchi cork, black

• SADDLE

  1. SEATPOST

     Velomann Full Carbon Aeroshape, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-44, 300mm-47/50cm, 350mm-53/61cm

  2. SADDLE

     Velomann Seta
