Trek Emonda ALR 5 2025

Name: Trek Emonda ALR 5 2024
Brand: Trek
SKU: 2362_sku_main
Price: 2799.99 USD
Availability: OutOfStock

$2 799.99

Sold out

Color

Crimson to Dark Carmine Fade - Sold out

Slate Prismatic/Black Prismatic Fade - Sold out

Size

47 - Sold out

50 - Sold out

52 - Sold out

54 - Sold out

56 - Sold out

58 - Sold out

60 - Sold out

62 - Sold out

Sold out

Save this product for later

Share this product with your friends

Share Share Pin it

Trek Emonda ALR 5 2025

Product Details

Brand: Trek

UPC: 768682230633

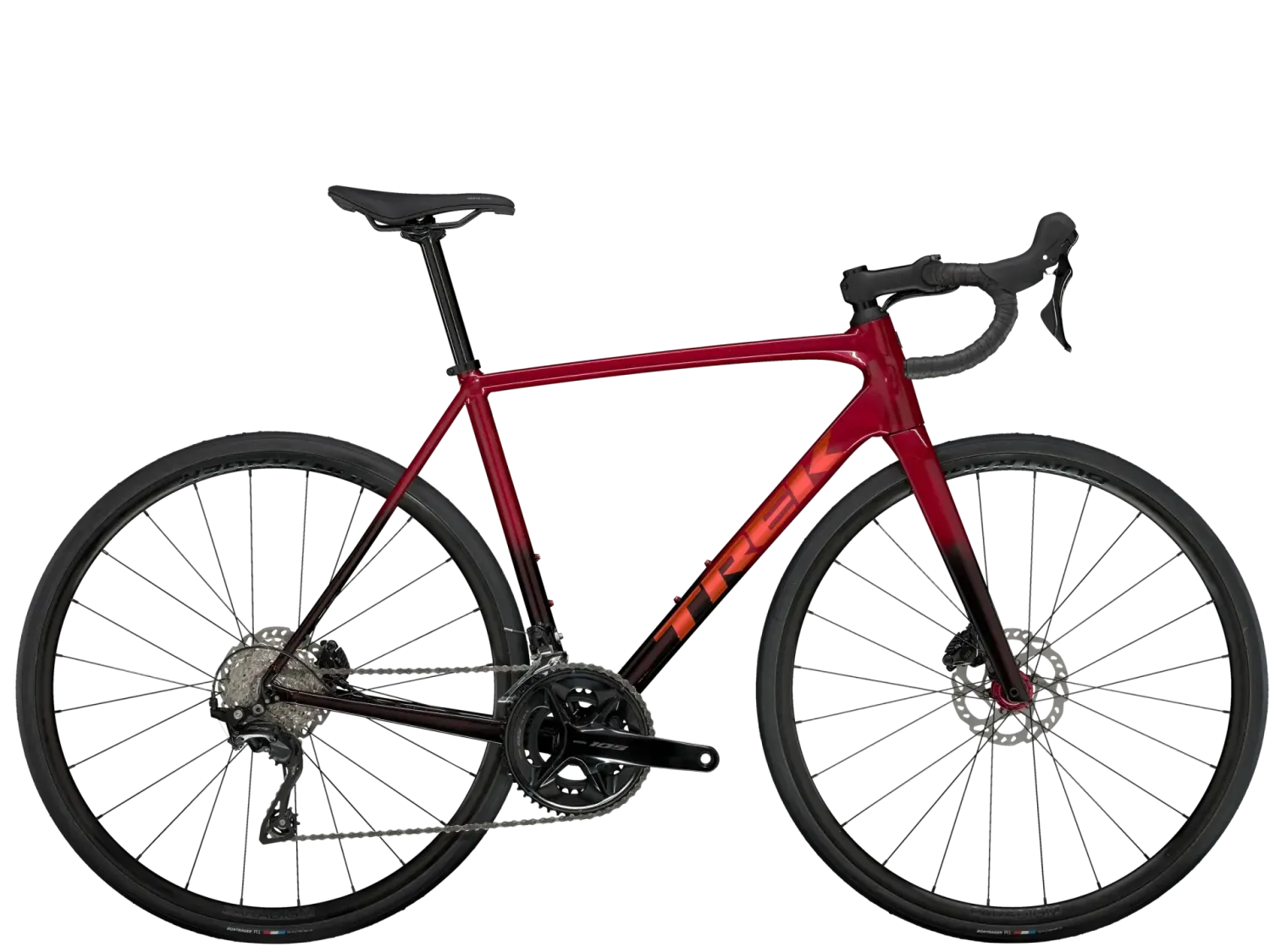

Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

Frame	Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Fork	Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

Weight

Weight	56 - 9.17 kg / 20.22 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Drivetrain

Shifter	Shimano 105 R7120, 12 speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size: 47 Shimano 105 R7100, 50/34, 165mm length
	Size: 50, 52 Shimano 105 R7100, 50/34, 170mm length
	Size: 54, 56, 58 Shimano 105 R7100, 50/34, 172.5mm length
	Size: 60, 62 Shimano 105 R7100, 50/34, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 48T, 2x: 53/39

Wheels

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size	28mm

Components

*Saddle	Size: 47, 50, 52 Verse Short Comp, steel rails, 155mm width
*Saddle	Size: 54, 56, 58, 60, 62 Verse Short Comp, steel rails, 145mm width
*Seatpost	Size: 47 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
*Seatpost	Size: 50, 52, 54, 56, 58, 60, 62 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 47, 50 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: 52 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: 54, 56, 58 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
	Size: 60, 62 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 60, 62 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake	Shimano 105 hydraulic disc, flat mount
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
