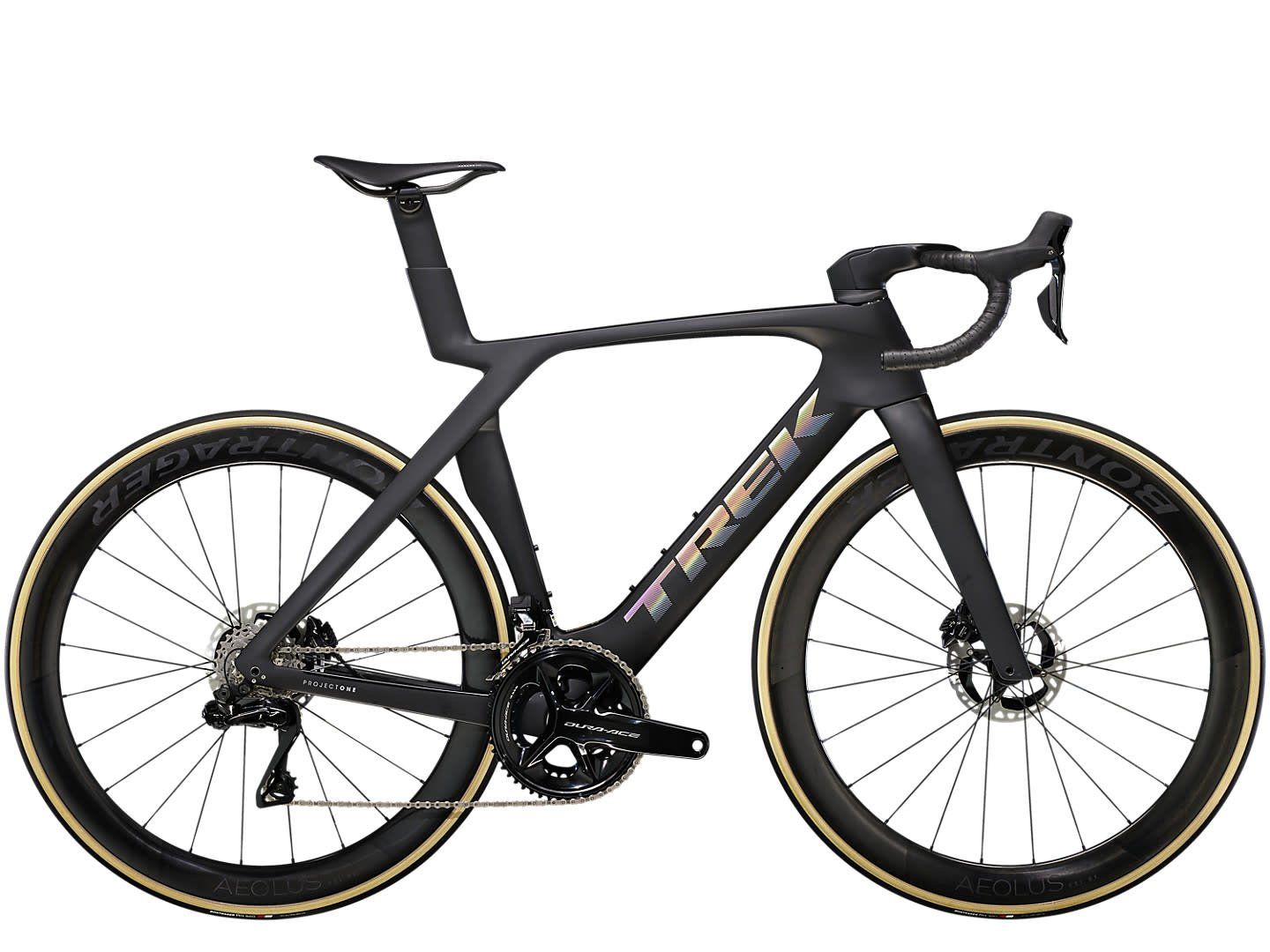

Trek Madone SLR 9 Gen 7 2024

Name: Trek Madone SLR 9 Gen 7 2024
Brand: Trek
SKU: 1975_sku_main
Price: 17299.99 USD
Availability: OutOfStock

$17 299.99

Sold out

Color

Deep Smoke

Viper Red

Azure

Metallic Red Smoke to Red Carbon Smoke

Satin Quicksilver

Axinite Flip/Trek Black

Size

47cm

50cm

52cm

54cm

56cm

58cm

60cm

62cm

Sold out

Save this product for later

Share this product with your friends

Share Share Pin it

Trek Madone SLR 9 Gen 7 2024

Product Details

Brand: Trek

UPC: 768682714126

Madone SLR 9 is ultralight, insanely fast, and super smooth. It's the ride you reach for on race day when every watt counts and your eyes are on the top step. This road race bike is built with an 800 Series OCLV Carbon frame and new IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead. It's built from the ground up with cream of the crop components for a smooth and light ride, like Shimano's wireless electronic Dura-Ace Di2 drivetrain and carbon wheels with a deep rim for even more aerodynamic gains.

Frame	800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Fork	Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit	H1.5 Race

Weight

Weight	54 - 7.10 kg / 15.66 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Drivetrain

Shifter	Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur	Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur	Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank	Size: 47 Shimano Dura-Ace R9200, 52/36, 165mm length
	Size: 50, 52 Shimano Dura-Ace R9200, 52/36, 170mm length
	Size: 54, 56, 58 Shimano Dura-Ace R9200, 52/36, 172.5mm length
	Size: 60, 62 Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9200, 11-30, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size	1x: 50T, 2x: 54/40

Wheels

Wheel front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager R4 320, 700x25mm
Max tire size	32mm (as measured, see manual for details)

Components

*Saddle	Size: 47, 50, 52 Aeolus P2 RSL, carbon rails, 155mm width
	Size: 47, 50, 52 Aeolus RSL, carbon rails, 155mm width
	Size: 54, 56, 58, 60, 62 Aeolus P2 RSL, carbon rails, 145mm width
	Size: 54, 56, 58, 60, 62 Aeolus RSL, carbon rails, 145mm width
*Seatpost	Size: 47, 50, 52, 54 Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, short length
*Seatpost	Size: 56, 58, 60, 62 Madone aero carbon internal seatmast cap, integrated light mount, 0mm offset, tall length
*Handlebar/stem (integrated)	Size: 47 Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
	Size: 50, 52 Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
	Size: 54 Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
	Size: 56, 58 Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
	Size: 60, 62 Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
Handlebar tape	Bontrager Supertack Perf tape
Brake	Shimano Dura-Ace hydraulic disc, flat mount
*Brake rotor	Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano MT900, centerlock, 160mm
*Brake rotor	Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano CL900, centerlock, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear

Accessories

Battery	Shimano BT-DN300
Charger	Charging cable included
