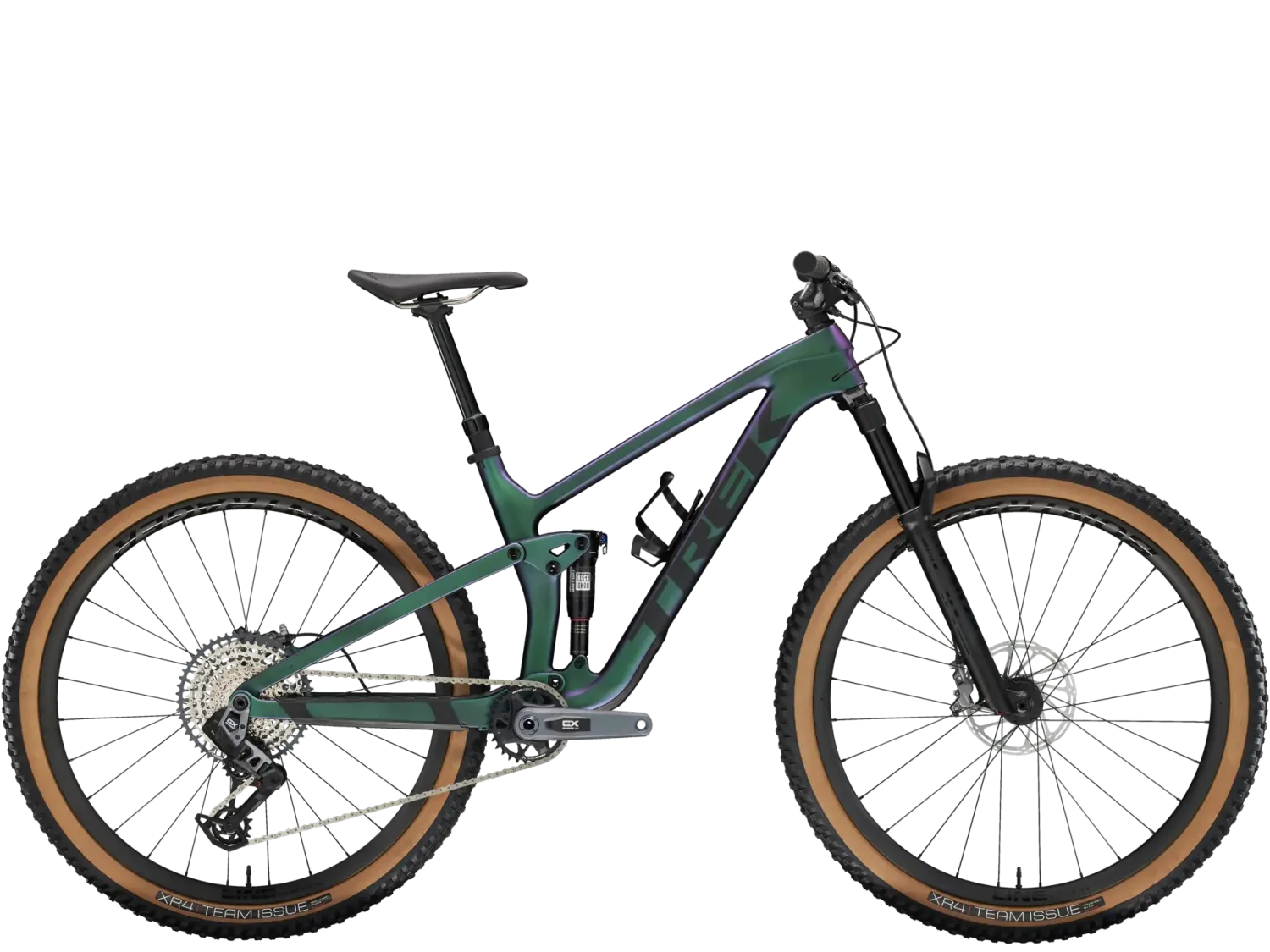

Trek Top Fuel 9.8 GX AXS T-Type Gen 4 2025
$8 999.99
Sold out
Color
Size
Sold out
Save this product for later
Trek Top Fuel 9.8 GX AXS T-Type Gen 4 2025
Product Details
Brand: Trek
UPC: 197216022589
Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding. It combines a high-end components package–including a SRAM GX Eagle AXS wireless electronic transmission–with a low-weight carbon frame for one unbelievably fun rig that's fast on flow and fun to ride on techy singletrack.
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel |
|---|---|
| Fork | RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel |
| Shock | RockShox Deluxe Ultimate RCT, 185mm x 50mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Wheel rear | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Tire | Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5x2.40'' |
| Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40" |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
Drivetrain
| Shifter | SRAM Eagle AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Bottom bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Max chainring size | 1x: 36T round, 34T oval, min 28T |
Components
Accessories
| Battery | SRAM eTap battery pack (with charger) |
|---|---|
| Bag | Bontrager BITS Internal Frame Storage Bag |
Weight
| Weight | M - 12.80 kg / 28.22 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
